Name: Kondansör Fan Motoru YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YDK-245-4A81-CHG
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler kondansatör fan motoru

Kondansör Fan Motoru YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ

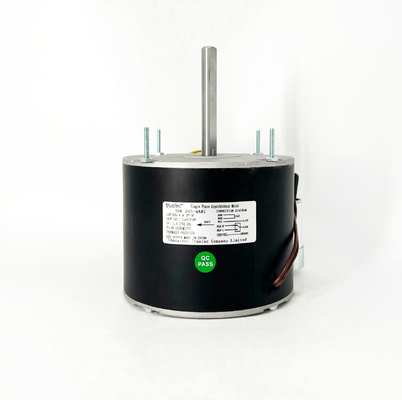

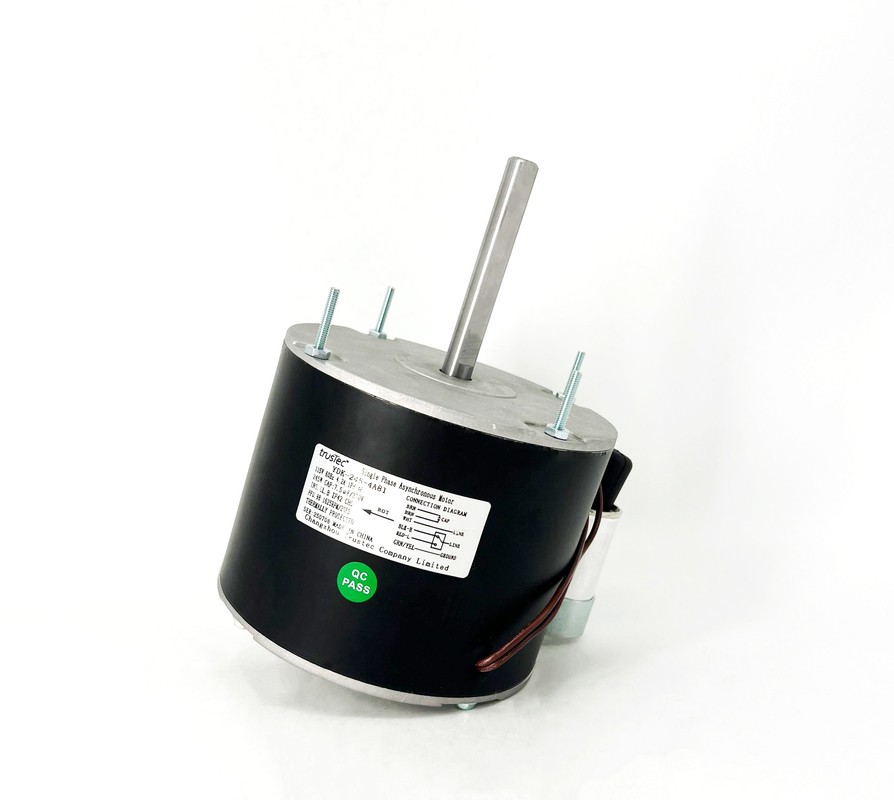

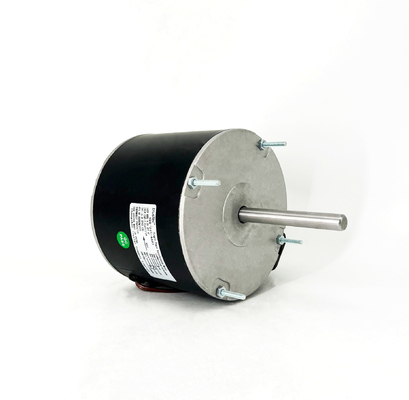

Condenser Fan Motor YDK-245-4A81-245W 1625RPM/2SPD 115V 60HZ

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YDK-245-4A81-CHG

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	Condenser Fan Motor	Frame:	142mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	115V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	4.2A
Phase:	Single Phase	Output HP:	245W
Shaft Flat:	One Flat	Speed:	1625RPM/2SPD
Mounting Orientation:	All Angle	Capacitor:	7.5μF/370V
Insulation Class:	Class B	Pole:	4P
Bearings:	Ball Bearing	Shaft Diameter:	0.5"/12.7mm
Rotation:	CW	PF:	0.98
Max. Ambient Temperature:	40℃/104℉	Lead Length:	11.81"/300mm
Motor Shell Length:	4.37"/111mm	Shaft Length:	4.72"/120mm
Flat Length:	3.23"/82mm	Screw Length:	1.06"/27mm
