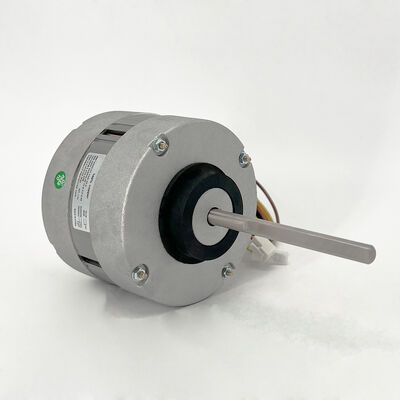

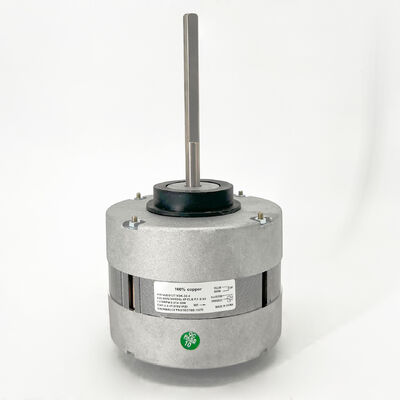

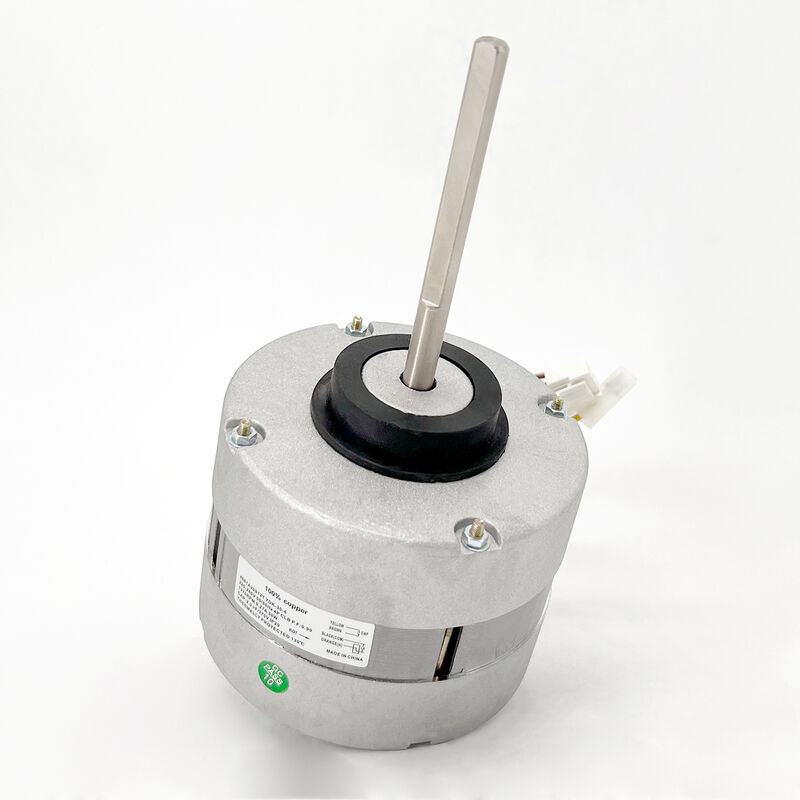

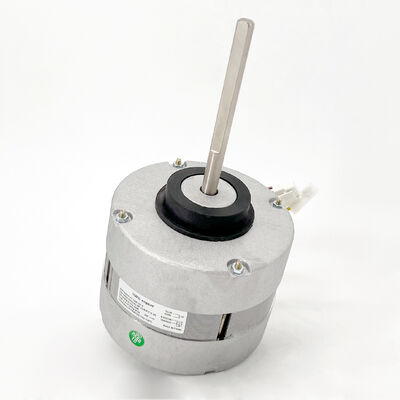

Name: AC Fan Motoru - 1/25 220-240V 50/60HZ 1370RPMRPM
Brand: Changzhou Trustec Company Limited
SKU: YDK-30-4-EGK
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler Klima Fan Motoru

AC Fan Motoru - 1/25 220-240V 50/60HZ 1370RPMRPM

AC Fan Motor - 1/25 220-240V 50/60HZ 1370RPMRPM

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YDK-30-4-EGK

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	AC Air Conditioner Fan Motor	Frame:	95mm/3.74"
Motor Type:	Permanent Split Capacitor	Supply Voltage:	220-240V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	50/60HZ
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	0.27A
Phase:	Single Phase	Output HP:	1/25HP 30W
Shaft Flat:	One Flat	Speed:	1370RPM
Mounting Orientation:	All Angle	Capacitor:	2uF/370V
Insulation Class:	Class B	Max. Ambient Temperature:	40℃/104℉
Bearings:	Ball Bearing	Pole:	4P
Rotation:	CW-LE	PF:	0.90
Shaft Diameter:	8mm/0.31"	Shaft Length:	102mm/4.02"
Flat Length:	65mm/ 2.56"	Lead Length:	700mm/27.56"
Motor Shell Length:	70mm/2.76"
