Name: 48 Çerçeve Üfleyici Motor - YDK-375-6B57-1/2HP 1075RPM/3SPD 115V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YDK-375-6B57-USS
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler HVAC Fan Motoru

48 Çerçeve Üfleyici Motor - YDK-375-6B57-1/2HP 1075RPM/3SPD 115V 60HZ

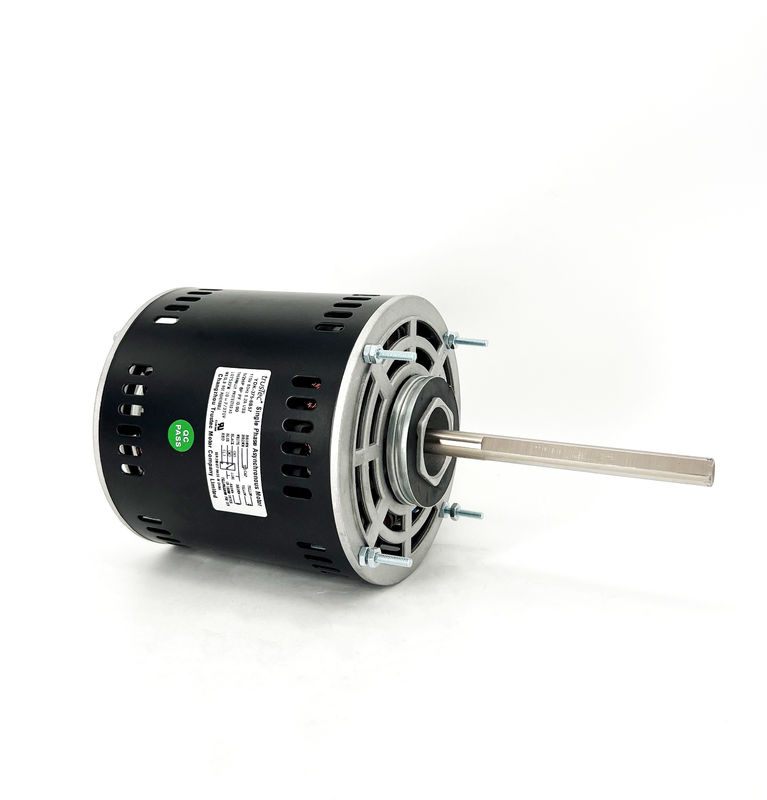

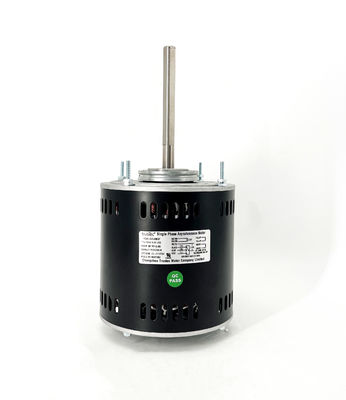

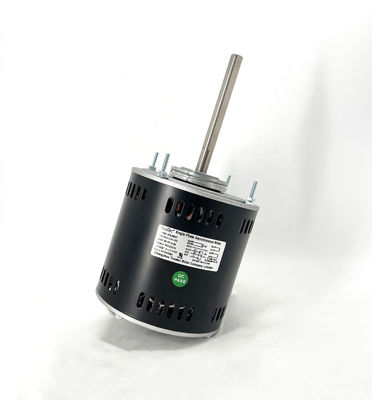

48 Frame Blower Motor - YDK-375-6B57-1/2HP 1075RPM/3SPD 115V 60HZ

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YDK-375-6B57-USS

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	Blower Fan Motor	Frame:	Nema 48
Motor Type:	Permanent Split Capacitor	Supply Voltage:	115V
Enclosure Type:	OAO(Open Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	6.2A
Phase:	Single Phase	Output HP:	1/2HP
Shaft Flat:	Right Angle Flat	Speed:	1075RPM/3SPD
Mounting Orientation:	All Angle	Capacitor:	10uF/370V
Insulation Class:	Class B	Pole:	6P
Bearings:	Ball Bearing	Shaft Diameter:	12.7mm/0.5"
Rotation:	CW/CCW	Flat Length:	101.6mm/4"
Max. Ambient Temperature:	50℃/122℉	Lead Length:	300mm/11.81"
Motor Shell Length:	142mm/5.59''	Screw Length:	14mm/0.55"
Shaft Length:	296mm/11.65''
