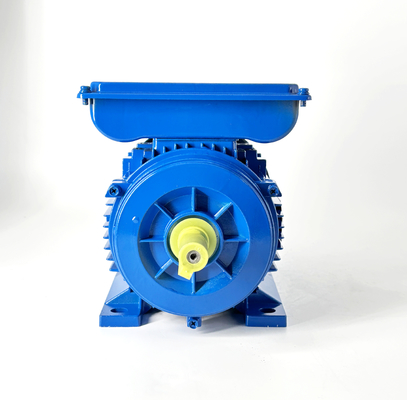

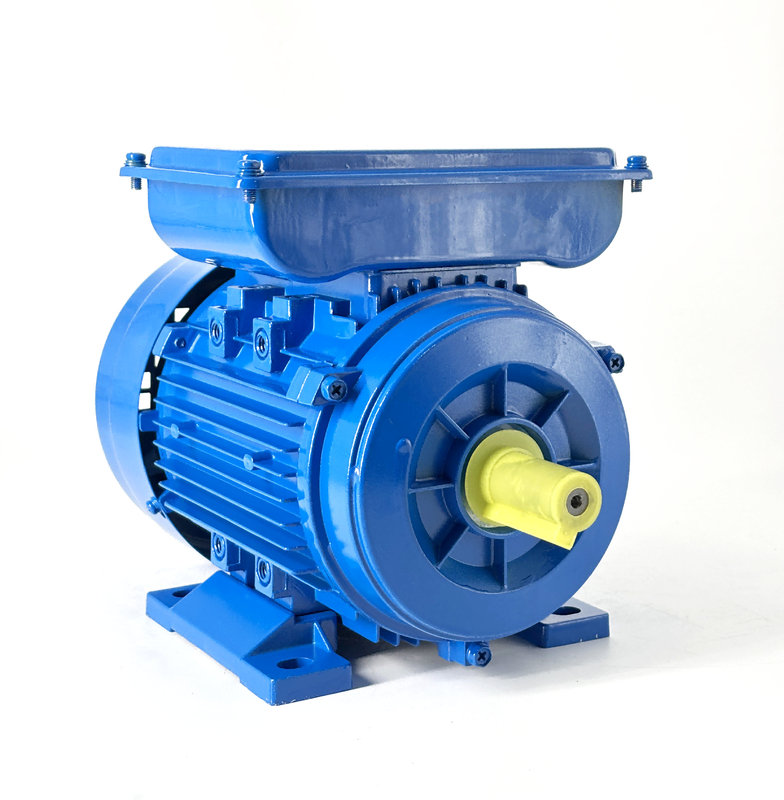

48 Frame UL Fan Coil Unit Motor 1/15HP 1550RPM/6SPD 115V 60HZ
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE
Model Numarası:YL802-4-VPL
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
6SPD Fan Coil Birim Motoru
,115V fan bobin ünitesi motoru
,1/15HP Fan Coil Unit Motor
Product:
Çift Değerli Kapasitörlü Asenkron Motor
Center Height Of Frame:
80mm
Motor Type:
Endüksiyon motoru
Supply Voltage:
220v
Enclosure Type:
TEAO(Tamamen Kapalı Hava Üstü)
Supply Frequency:
50Hz
Thermal Overload:
Otomatik bir termal aşırı yükleme ile donatılmış
Current:
5.1A
Phase:
Tek aşama
Output HP:
1hp
Motor Housing:
Alüminyum kabuk
Rated Speed:
1400rpm
Bearings:
Bilye
Pole:
4P
Motor Winding:
% 100 bakır sarma
Capcaitor:
100UF/250V 20UF/450V
Insulation Class:
F Sınıfı
Mounting Type:
B3
PF:
0.92
Ürün Açıklaması
Model Voltage(V) Frequency(Hz) Power(KW) Speed(RPM) Current(A) YL712-4 220 50 0.37 1400 2.8 YL801-4 220 50 0.55 1400 4 YL802-4 220 50 0.75 1400 5.1 YL90S-4 220 50 1.1 1400 7.3 YL100L1-4 220 50 2.2 1400 13.9
Ürün Özetleri
Model Voltage(V) Frequency(Hz) Power(KW) Speed(RPM) Current(A) YL712-4 220 50 0.37 1400 2.8 YL801-4 220 50 0.55 1400 4 YL802-4 220 50 0.75 1400 5.1 YL90S-4 220 50 1.1 1400 7.3 YL100L1-4 220 50 2.2 1400 13.9
