Name: Fan Bobin Motoru YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YSK-75-4A60-EVT
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler fan coil motoru

Fan Bobin Motoru YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ

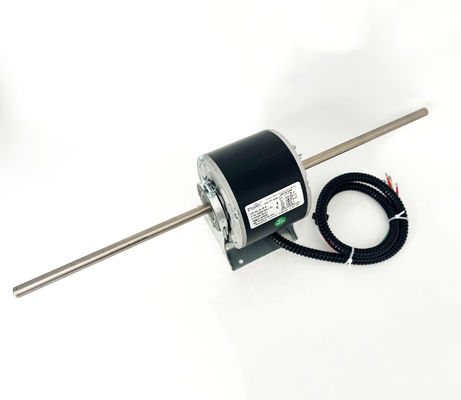

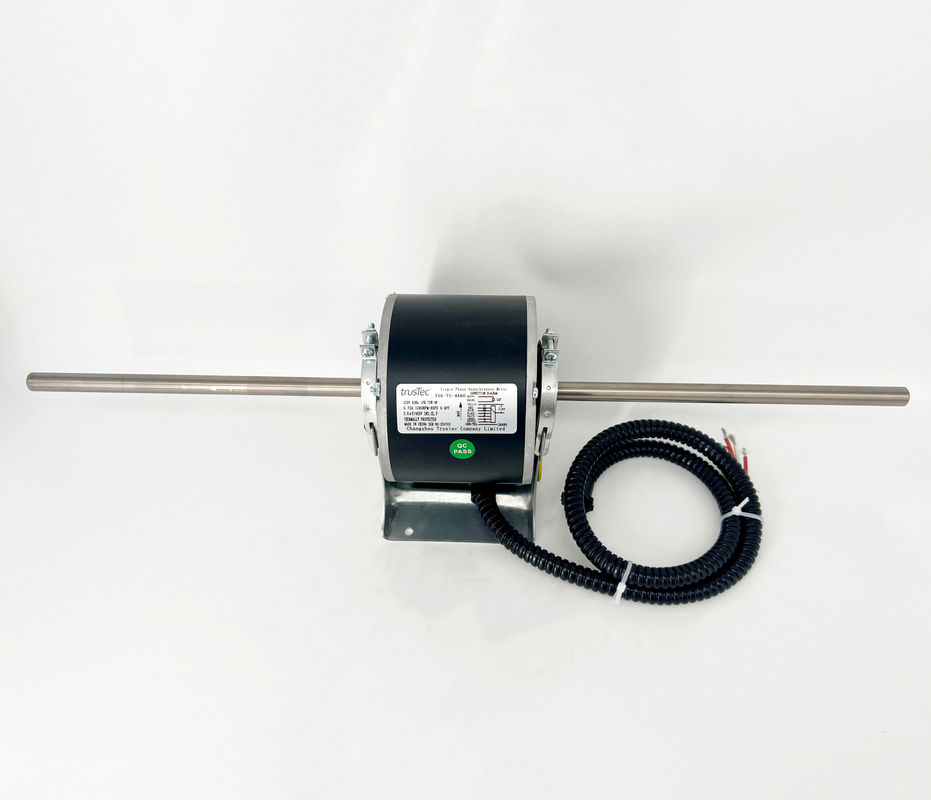

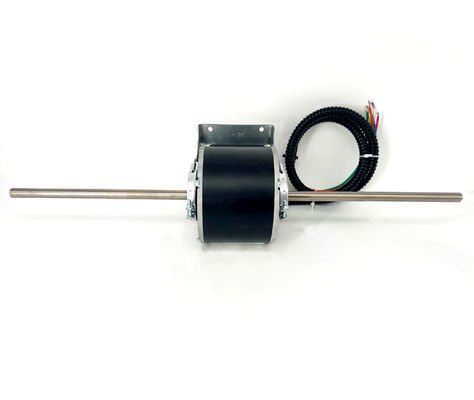

Fan Coil Motor YSK-75-4A60 - 75W 1280RPM6SPD 220V 60HZ

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YSK-75-4A60-EVT

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	AC Fan Coil Unit Motor	Frame:	123mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	220V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	0.73A
Phase:	Single Phase	Output HP:	75W
Shaft Flat:	One Flat	Speed:	1280RPM/6SPD
Mounting Orientation:	All Angle	Capacitor:	5uF/450V
Insulation Class:	Class F	Pole:	4P
Bearings:	Ball Bearing	Shaft Diameter:	0.5"/12.7mm
PF:	0.9	Shaft Length:	8.86"/225mm*2
Rotation:	CW-LE	Flat Length:	4.72"/120mm*2
Max. Ambient Temperature:	70℃/158℉	Lead Length:	41.43"/1050mm
Motor Shell Length:	4.72"/120mm
