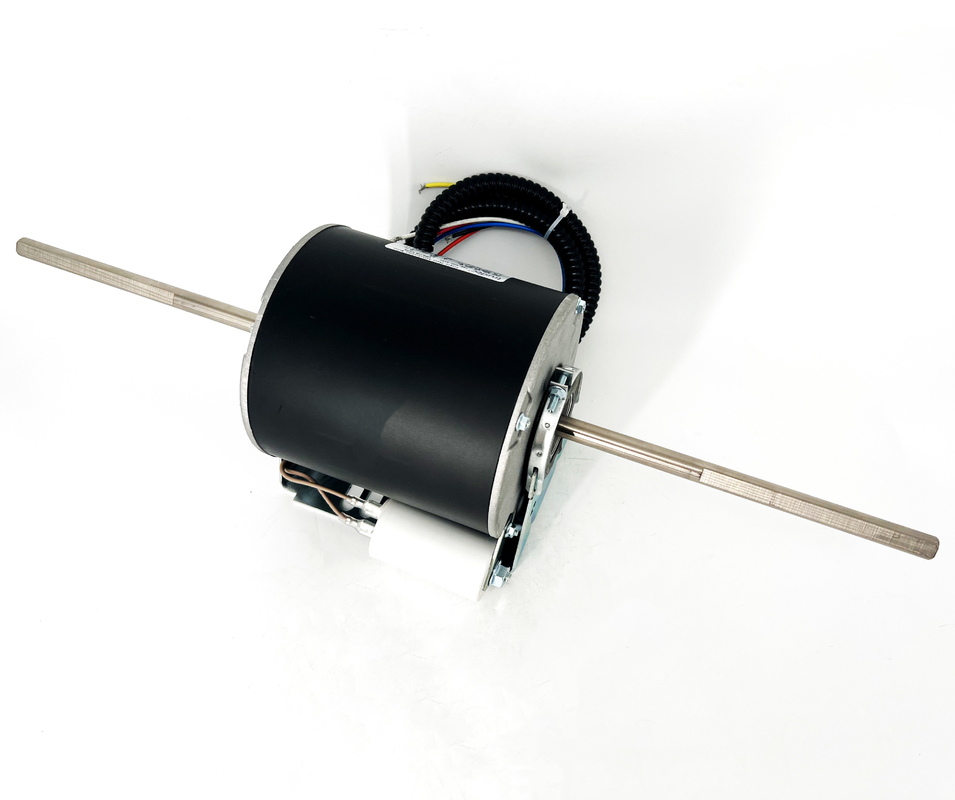

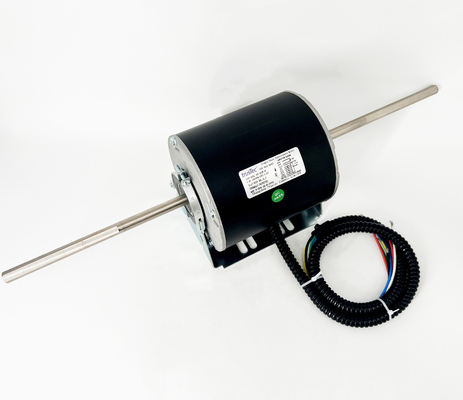

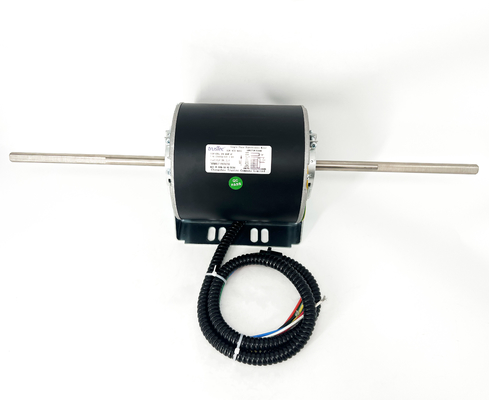

Name: Fan Coil Motor YSK-400-4A60 - 400W 1280RPM6SPD 220V 60HZ
Brand: Changzhou Trustec Company Limited
SKU: YSK-400-4A60-EVT
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler fan coil motoru

Fan Coil Motor YSK-400-4A60 - 400W 1280RPM6SPD 220V 60HZ

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YSK-400-4A60-EVT

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	AC Fan Coil Unit Motor	Frame:	142mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	220V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	3.9A
Phase:	Single Phase	Output HP:	400W
Shaft Flat:	One Flat	Speed:	1280RPM/6SPD
Mounting Orientation:	All Angle	Capacitor:	15uF/450V
Insulation Class:	Class F	Pole:	4P
Bearings:	Ball Bearing	Shaft Diameter:	0.5"/12.7mm
PF:	0.9	Shaft Length:	7.87"/200mm*2
Rotation:	CW-LE	Flat Length:	4.72"/120mm*2
Max. Ambient Temperature:	70℃/158℉	Lead Length:	41.43"/1050mm
Motor Shell Length:	6.63"/168.5mm
