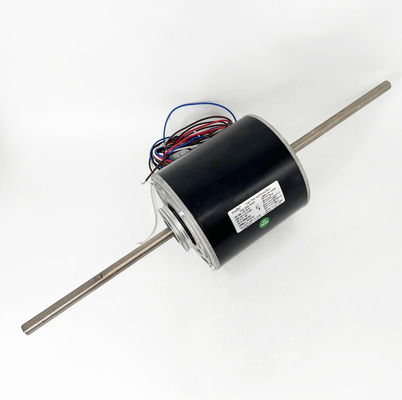

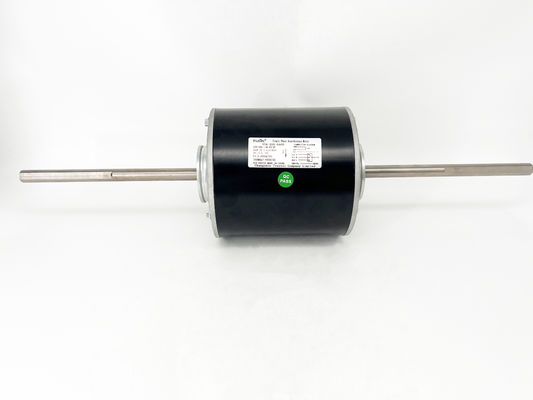

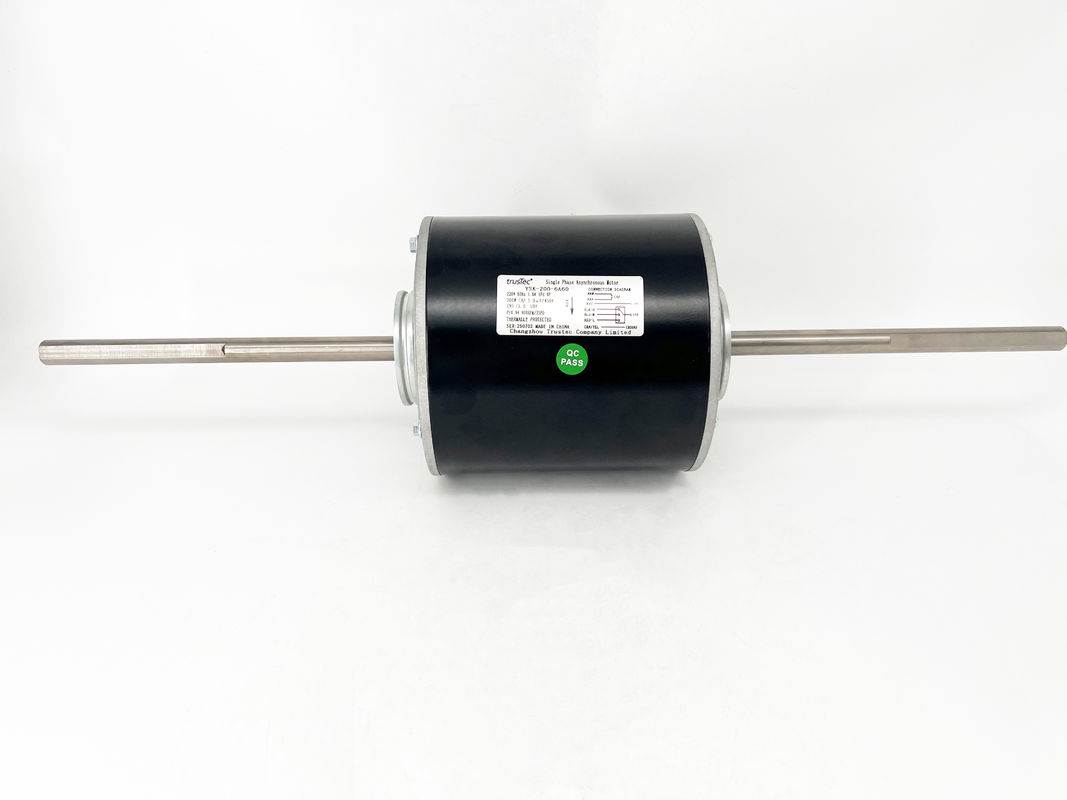

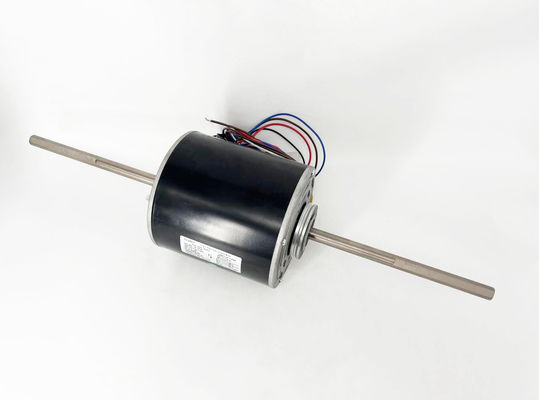

Name: Fan Coil Motor YSK-200-6A60 - 200W 900RPM3SPD 220V 50HZ
Brand: Changzhou Trustec Company Limited
SKU: YSK-200-6A60-UBV
Price: 125.00 USD
Availability: InStock

Ana sayfa Ürünler fan coil motoru

Fan Coil Motor YSK-200-6A60 - 200W 900RPM3SPD 220V 50HZ

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE、UL529388
Model Number:	YSK-200-6A60-UBV

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	AC Fan Coil Unit Motor	Frame:	142mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	220V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	50Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	1.6A
Phase:	Single Phase	Output HP:	200W
Shaft Flat:	One Flat	Speed:	900RPM/3SPD
Mounting Orientation:	All Angle	Capacitor:	5uF/450V
Insulation Class:	Class B	Pole:	6P
Bearings:	Ball Bearing	Shaft Diameter:	0.55"/14mm
PF:	0.94	Shaft Length:	8.29"/210.5mm*2
Rotation:	CCW-LE	Flat Length:	3.94"/100mm*2
Max. Ambient Temperature:	40℃/104℉	Lead Length:	39.37"/1000mm
Motor Shell Length:	5.67"/144mm
