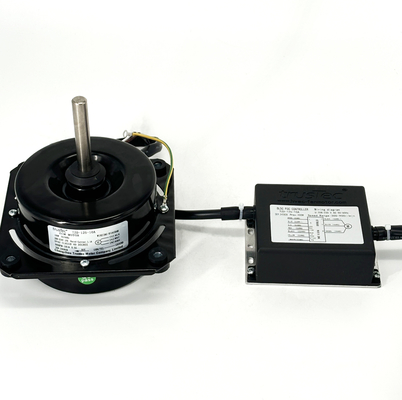

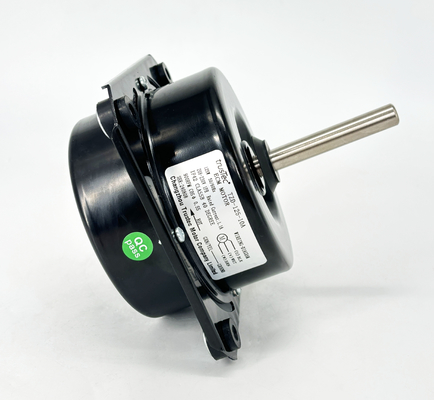

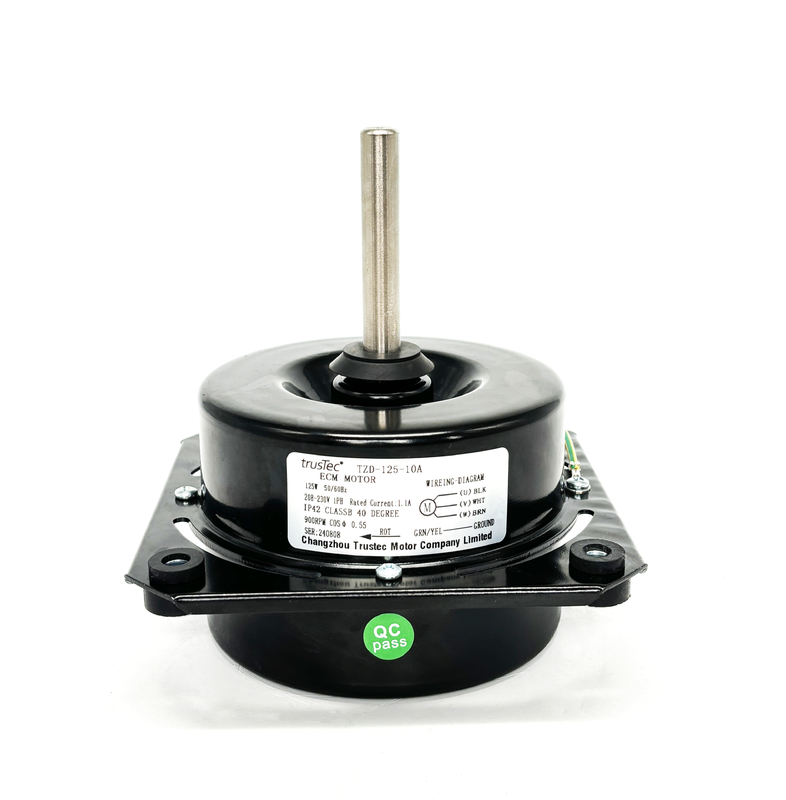

ECM Motoru - 125W 900RPM 220V 50/60HZ 0-10V Hız Kontrolü
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE
Model Numarası:TZD-125-10A-TVM
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
125W BLDC Motoru
,900 RPM BLDC Motoru
,220V BLDC Motoru
Product:
Elektronik Yönlendirmeli Motor (ECM)
Supply Voltage:
220v
Enclosure Type:
TEAO(Tamamen Kapalı Hava Üstü)
Supply Frequency:
50/60hz
Thermal Overload:
Otomatik bir termal aşırı yükleme ile donatılmış
Current:
1.65A
Phase:
Tek aşama
Output Power:
125W
Mounting:
Bütün melekleri ayakta tutuyorum.
Speed:
900 devir
Bearings:
Bilye
Poles:
10P
Mounting Orientation:
Tüm açı
Shaft Length:
3,04" / 78 mm
Insulation Class:
B Sınıfı
Frame Size:
120MM
Max. Ambient Temperature:
40°C/104℉
Shaft Diameter:
1/2" / 12,7 mm
Rotation:
CCW(GD)
Flat Length:
1,99" / 50 mm
Speed Control:
0-10V VSP
Lead Length:
11,8" / 300 mm
Other:
FG ve 10VDC
