| Place of Origin: | Changzhou, China |
| Marka adı: | trusTec |
| Sertifika: | CE |
| Model Number: | TZD-600-10A2-NLR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Fiyat: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

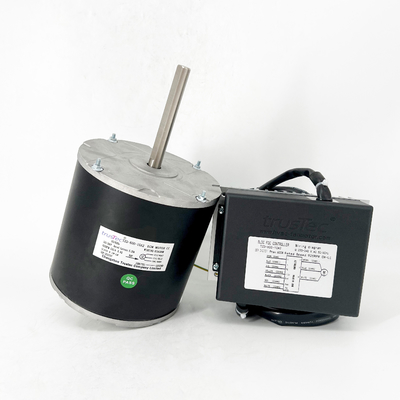

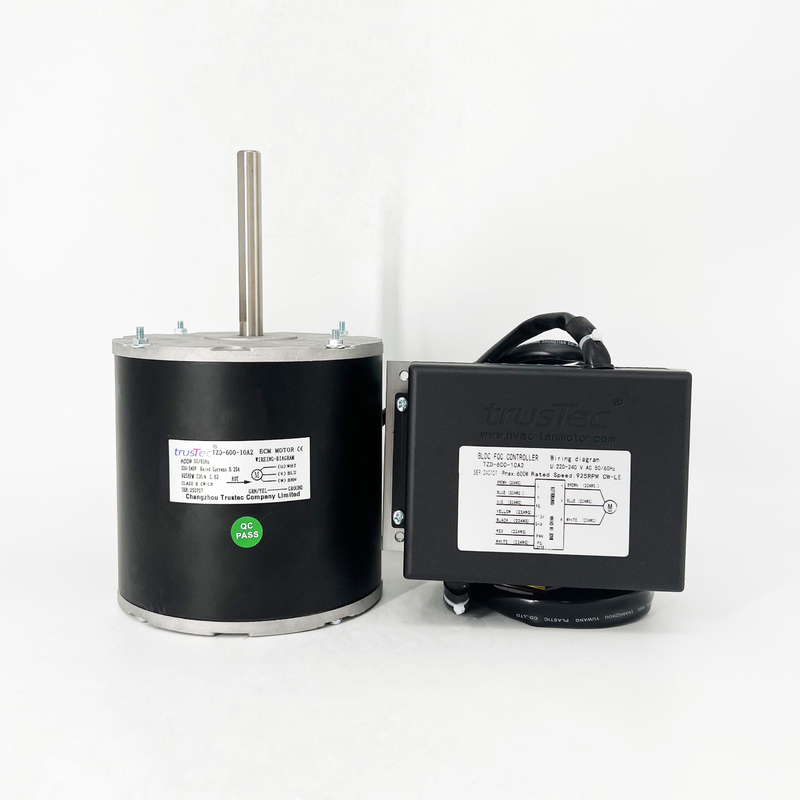

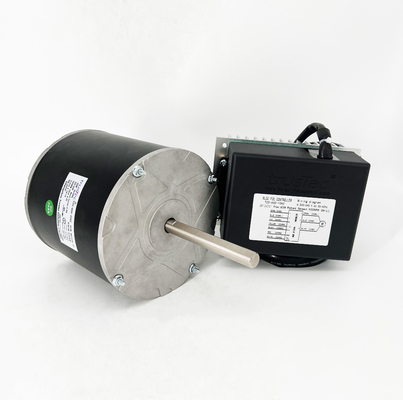

| Product: | EC Fan coil unit motor | Frame: | 5.630"/143mm |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 220-240V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50/60HZ |
| Phase: | Single Phase | Current: | 5.25A |
| Mounting: | Bracket | Output Power: | 600W |
| Bearings: | Ball Bearing | Speed: | 925RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Flat Length: | 3.54"/90mm |
| Control Mode: | PWM | Shaft Length: | 3.88"/98.5mm |
| Rotation: | CW(LE) | Shaft Diameter: | 0.5"/12.7mm |
| Lead Length: | 19.69"/500 | Max. Ambient Temperature: | 40℃/104℉ |
| Motor Shell Length: | 5.47"/139mm |
