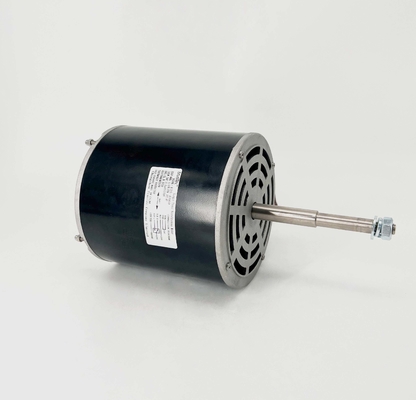

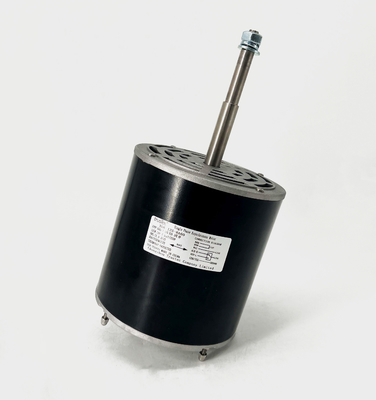

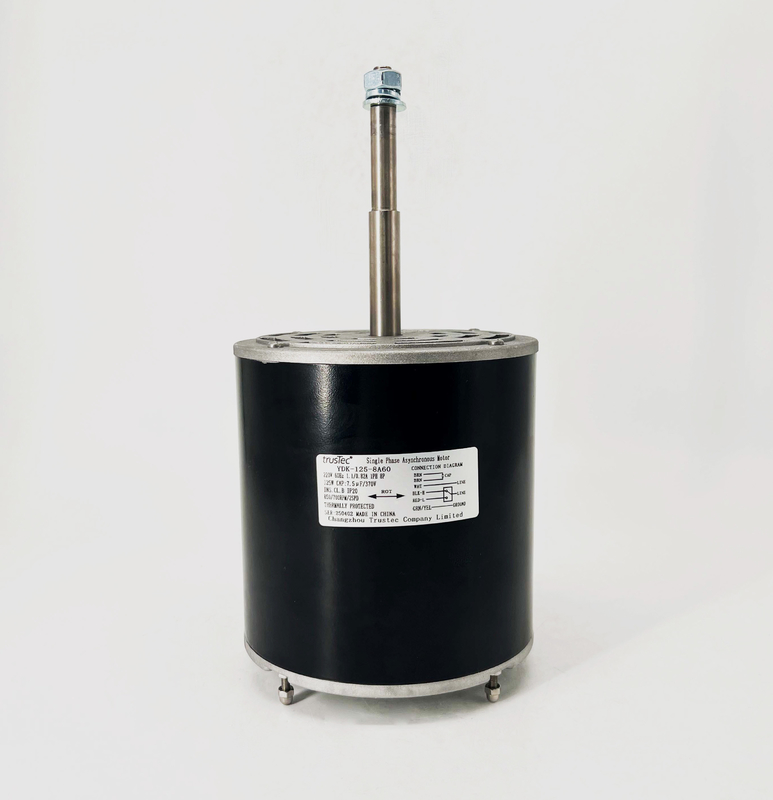

48 Çerçeve Üfleyici Fan Motoru - 1/6HP 220V 60HZ 850/700RPM
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE、UL529388
Model Numarası:YDK-125-8A60-BMF
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
220V'lik bir fan motoru
,1/6HP'lik bir fan motoru
,700 RPM'lik bir fan motoru
Product:
Kondenser Fan Motoru
Frame:
48 çerçeve/143 mm
Motor Type:
Kalıcı Bölünmüş Kapasitör
Supply Voltage:
220V
Enclosure Type:
OAO (açık hava)
Supply Frequency:
60 Hz
Thermal Overload:
Otomatik Termal Aşırı Yük ile Donatılmıştır
Current:
1.1/0.82A
Phase:
Tek Fazlı
Output HP:
1/6 HP
Shaft Flat:
Bir Daire
Speed:
850/700rpm
Mounting Orientation:
Tüm Açı
Capacitor:
7,5uf/370v
Insulation Class:
B sınıfı
Pole:
8P
Bearings:
Bilyalı Rulman
Shaft Diameter:
0.591" / 15mm
Rotation:
CW/CCW
Shaft Length:
4.685 '"/119mm
Flat Length:
1.496 "/38mm
Max. Ambient Temperature:
40°C/104℉
Lead Length:
47.24 "/1200mm
Motor Shell Length:
5.866 "/149mm
