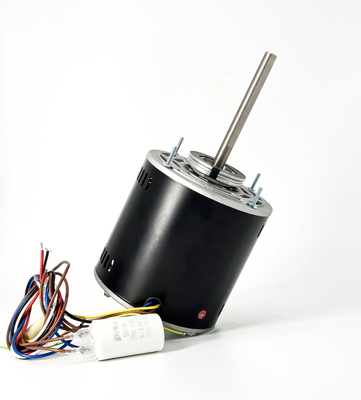

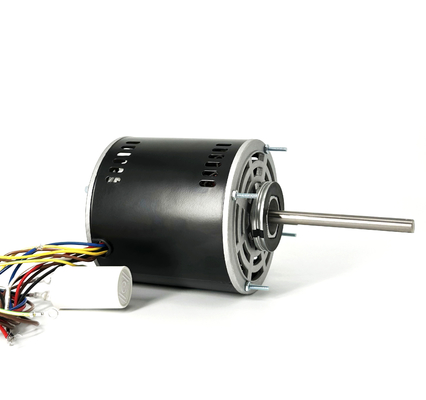

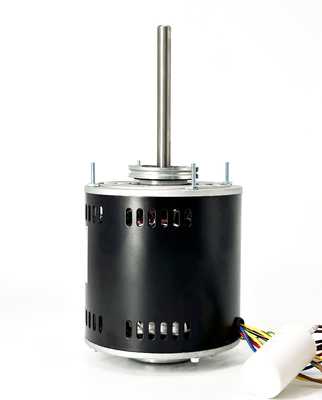

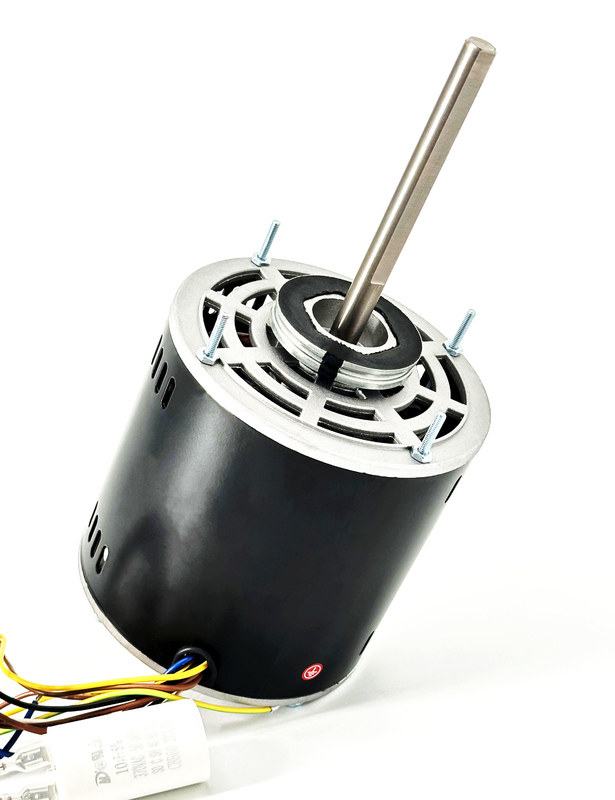

48 Çerçeve Doğrudan Sürüş Fırlatıcı Motoru - 3/4HP 1075RPM/3SPD 208-230V 60HZ
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE、UL529388
Model Numarası:CTM5-590
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
3/4HP Doğrudan Sürüşlü Blow Motor
,208-230V Doğrudan tahrikli nefesi motor
,1075RPM Doğrudan tahrikli nefesi motor
Product:
Doğrudan Tahrikli Fan Motoru
Frame:
Nema 48
Motor Type:
Kalıcı bölünmüş kapasitör
Supply Voltage:
208-230V
Enclosure Type:
OAO (Açık Hava Üzeri)
Supply Frequency:
60Hz
Thermal Overload:
Otomatik bir termal aşırı yükleme ile donatılmış
Current:
5.5A
Phase:
Tek aşama
Output HP:
3/4HP
Shaft Flats:
Bir daire
Rated Speed:
1075 dev/dak/3 hız
Mounting Orientation:
Tüm açı
Capacitor:
10uF/370V
Mounting:
Bütün melekleri ayakta tutuyorum.
Shaft Length:
4.5" / 114.3mm
Insulation Class:
B Sınıfı
Shaft Diameter:
1/2" / 12,7 mm
Bearings:
Bilye
Flat Length:
3,5" / 88,9 mm
Max. Ambient Temperature:
40°C/104℉
Lead Length:
26" / 660,4 mm
Rotation:
Tersine çevrilebilir
Ürün Açıklaması
Çapraz referans
|
TRUSTEC
|
Açıklama
|
YÜZYILIK/
AO Smith
|
FASCO
|
GE/GENTEQ
|
US MOTORS/
Emerson
|
WAGNER
|
YORK Kaynağı
|
Maraton |
MARS
|
NORDYNE/
Ortaklar
Seçim
|
PACKARD |
RHEEM/RUUD
PROTECH
|
|
CTM5-583
|
1/4HP 115V 1075/3 RPM
|
FDL1026
|
D721
|
3583 | 1863 |
WG840583
|
S1-FHM3583
|
10583 | 01-0169 | 43583 | W51-14BAA3-01 | |
|
CTM5-585
|
1/3HP 115V 1075/3 RPM |
FDL1036
|
D701 | 3585 | 1864 |
WG840585
|
S1-FHM3585
|
X002 | 10585 | 01-0170 | 43585 | W51-13BAA3-01 |
|
CTM5-587
|
1/2HP 115V 1075/3 RPM
|
FDL1056
|
D701
|
3587 | 1865 |
WG840587
|
S1-FHM3587
|
X004 | 10587 | 01-0171 | 43587 | W51-12BAA3-01 |
|
CTM5-589
|
3/4HP 115V 1075/3 RPM
|
DL1076
|
D278 | 3589 | 8904 | WG840589 | S1-FHM3589 | X009 | 10589 | 01-0172 | 43589 | W51-34BAA3-01 |
|
CTM5-584
|
1/4HP 208-230V 1075/3 RPM
|
D1026
|
D727 | 3584 | 1971 | WG840584 | S1-FHM3584 | X001 | 10584 | 01-0173 | 43584 | W51-14BJA3-01 |
| CTM5-586 | 1/3HP 208-230V 1075/3 RPM | FD1036 | D923 | 3586 | 1972 | WG840586 | S1-FHM3586 | X003 | 10586 | 01-0174 | 43586 | W51-13BJA3-01 |
| CTM5-588 | 1/2HP 208-230V 1075/3 RPM | FD1056 | D703 | 3588 | 1973 | WG840588 | S1-FHM3588 | X005 | 10588 | 01-0175 | 43588 | W51-12BJA3-01 |
| CTM5-590 | 3/4HP 208-230V 1075/3 RPM | D1076 | D729 | 3590 | 8905 | WG840590 | S1-FHM3590 | X010 | 10590 | 01-0176 | 43590 | W51-34BJA3-01 |
Daha fazla motor modeli için dosyaya bakabilirsinizÇapraz Referans TRUSTEC MOTOR.pdf
