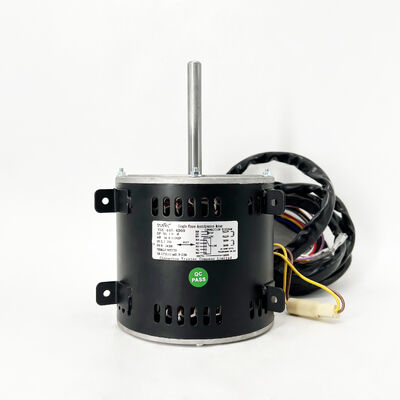

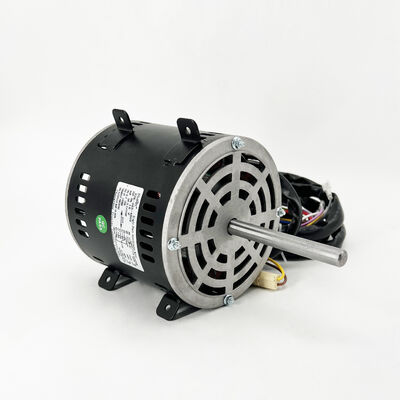

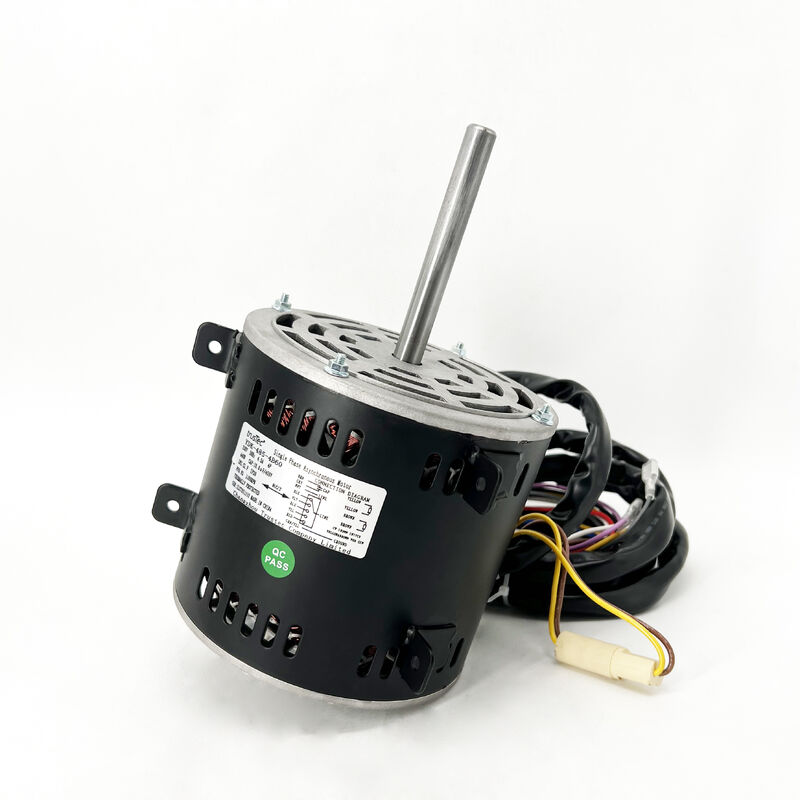

48 Kasa Üfleyici Motor - 440W 230V 50HZ 1100RPM/5 KADEME
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE、UL529388
Model Numarası:YDK-485-4B60-ILCT
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
48 Çerçeve üfleyici motoru
,440W HVAC Blower Motoru
,230V HVAC Blower Motoru
Product:
HVAC Fan Motoru
Frame:
48 Çerçeve
Motor Type:
Kalıcı Bölünmüş Kapasitör
Supply Voltage:
230V
Enclosure Type:
OAO(Açık Hava Üzeri)
Supply Frequency:
50Hz
Thermal Overload:
Otomatik Termal Aşırı Yük ile Donatılmıştır
Current:
4,5 bir
Phase:
Tek Fazlı
Output HP:
440W
Shaft Flat:
Bir Daire
Speed:
1100RPM/5SPD
Mounting Orientation:
Tüm Açı
Capacitor:
10.0μF/450V
Insulation Class:
F Sınıfı
Pole:
4P
Rotation:
Geri dönüşümlü
PF:
0,95
Bearings:
Bilyalı Rulman
Max. Ambient Temperature:
70°C/158℉
Motor Shell Length:
130mm/5.12 "
Flat Length:
80mm/3.15 "
Shaft Diameter:
12,7 mm/0,5"
Shaft Length:
101,5 mm/4,00"
Lead Length:
2400 mm/94,49"
Ürün Açıklaması
Ürün Özetleri
İlgili Ürünler
-
Doğrudan Tahrikli HVAC Fan Motoru 115VAC 1/4HP 1075/3RPM UL Onayı
Direct Drive Blower Motor - 115VAC 1/4HP 1075/3RPM - UL Approval Cross Reference CROSS REFERENCE TRUSTEC MOTOR.pdf TRUSTEC DESCRIPTION CENTURY/ AO SMITH FASCO GE/ GENTEQ US MOTORS/ EMERSON WAGNER YORK SOURCE 1 MARATHON MARS NORDYNE/ PARTNERS CHOICE PACKARD RHEEM/RUUD PROTECH CONDENSER FAN MOTORS CTM5-727 1/6HP 208-230V 1075/1 RPM FSE1016S D917 3727 1859 WG840727 S1-FHM3727 X411 10727 01-0160 43727 W51-16CJA1-01 CTM5-728 1/4HP 208-230V 1075/1 RPM FSE1026S D909 3728 1860
-
UL Doğrudan Tahrikli HVAC Fan Motoru 208~230VAC 1/2HP 1075/3RPM Klima Motoru
Direct Drive Blower Motor - 208~230VAC 1/2HP 1075/3RPM - Air Handler Motor - UL Approval Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over
-
Üç Hızlı HVAC Santrifüj Fan Motoru - 6cm / 9cm Braket Montajı
6cm/9cm bracket blower motor three Speed , HVAC Centrifugal Fan motor Product specification: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered. Electrical parameters: Model YDK-150-6B Output Power 1/5HP Full load Amps 1.4A Frequency 50/60Hz Voltage 208-230V Speed 920/3 speed Insulation class B Structure ball bearing, with capacitor Product application: Condenser and condenser
-
PCS Kalıcı Bölünmüş Kondansatör Doğrudan Tahrikli Fırın Fan Motoru 115VAC 280~230VAC 1/2HP 1075/3RPM
KEY FEATURES OF DIRECT DRIVE BLOWER MOTOR Direct Drive Blower Motor PCS Pernanent Split Capacitor Motor Type 1/6,1/5,1/4,1/3,1/2,or 3/4 Rated Horsepower Supply Voltage 115 or 208/230 VAC Supply Frequency 60 hertz Insulation Class B 825 or 1075rpm Rated Speed Run Capacitor 370 VAC10 to 20 μF Temperature Rating 60℃ / 140℉ Equipped with an automatic thermal overload Current 1.6 to 9.5 amps at rated speed and horsepower Open Air Over Frame 48 NEMA Ball Bearing Shaft Diameter 1/2"
