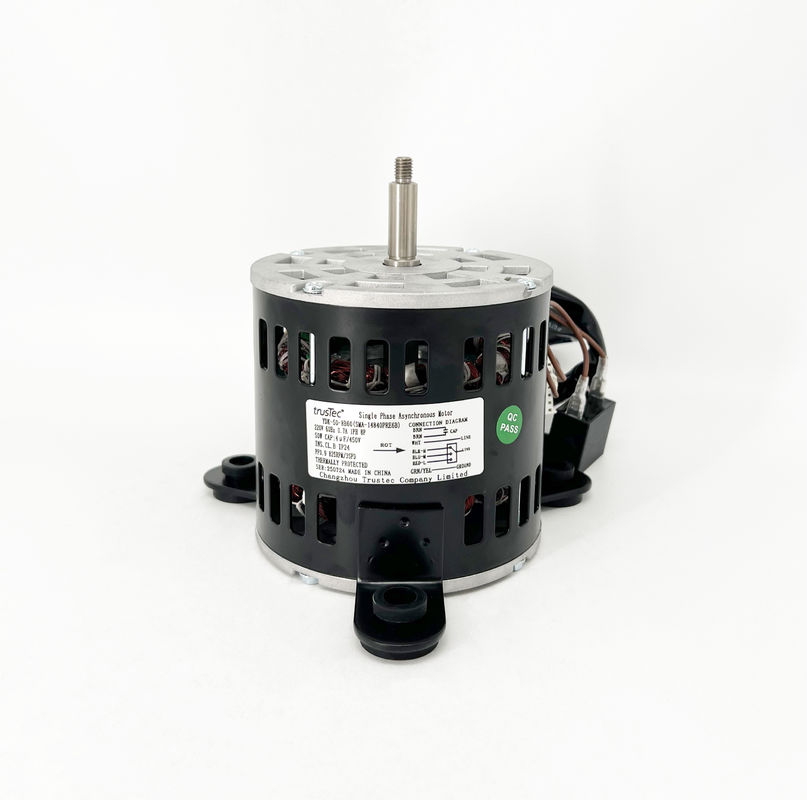

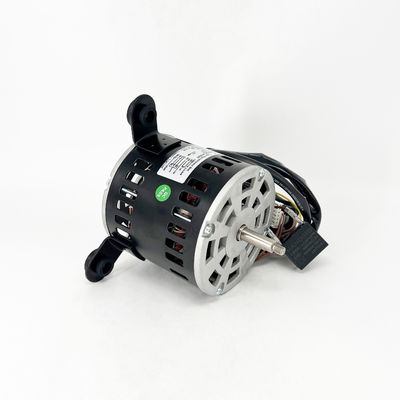

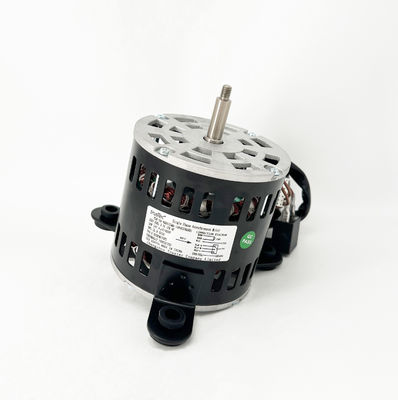

42 Kasa Üfleyici Motor - 1/15HP 220V 60HZ 825RPM/3KAD
Menşe Yeri:Changzhou, Çin
Marka Adı:trusTec
Sertifikasyon:CE、UL529388
Model Numarası:YDK-50-8B60-KPM
Minimum Sipariş Miktarı:200 adet
Fiyat:Negotiable (FOB/CNF/CIF)
Ödeme Koşulları:T/T, L/C
Tedarik Yeteneği:Ayda 100.000 adet
Etiketler:
Ürün Detayları
Vurgulamak:
1/15HP Üfleyici Motor
,825RPM Üfleyici Motor
,İç Mekan Üfleyici Motor
Product:
Kapalı fan motoru
Frame:
42 çerçeve
Motor Type:
Kalıcı Bölünmüş Kapasitör
Supply Voltage:
220V
Enclosure Type:
OAO(Açık Hava Üzeri)
Supply Frequency:
60 Hz
Thermal Overload:
Otomatik Termal Aşırı Yük ile Donatılmıştır
Current:
0.7a
Phase:
Tek Fazlı
Output HP:
50W
Shaft Flat:
Bir Daire
Speed:
825rpm/3spd
Mounting Orientation:
Tüm Açı
Capacitor:
4μf/450V
Insulation Class:
B sınıfı
Pole:
8P
Bearings:
Bilyalı Rulman
Shaft Diameter:
0.47 "/12mm
PF:
0.9
Shaft Length:
1.72 "/43.8mm
Rotation:
CCW
Flat Length:
0.71 "/18mm
Max. Ambient Temperature:
40°C/104℉
Lead Length:
28.35 "/720mm
Motor Shell Length:
4.53 "/115mm
Ürün Açıklaması
