Name: 220-240V 50Hz 55W 820RPM Dış Fan Motoru
Brand: Changzhou Trustec Company Limited
SKU: YDK-55-6A8-SGR
Price: pazarlık edilebilir USD
Availability: InStock

Ana sayfa Ürünler Dış Fan Motoru

220-240V 50Hz 55W 820RPM Dış Fan Motoru

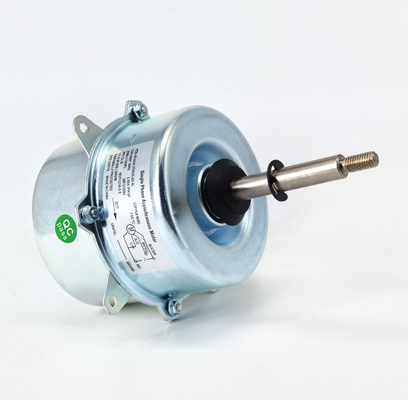

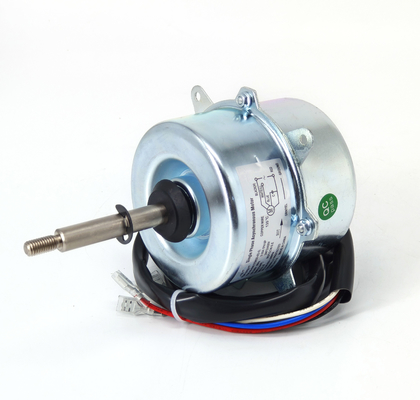

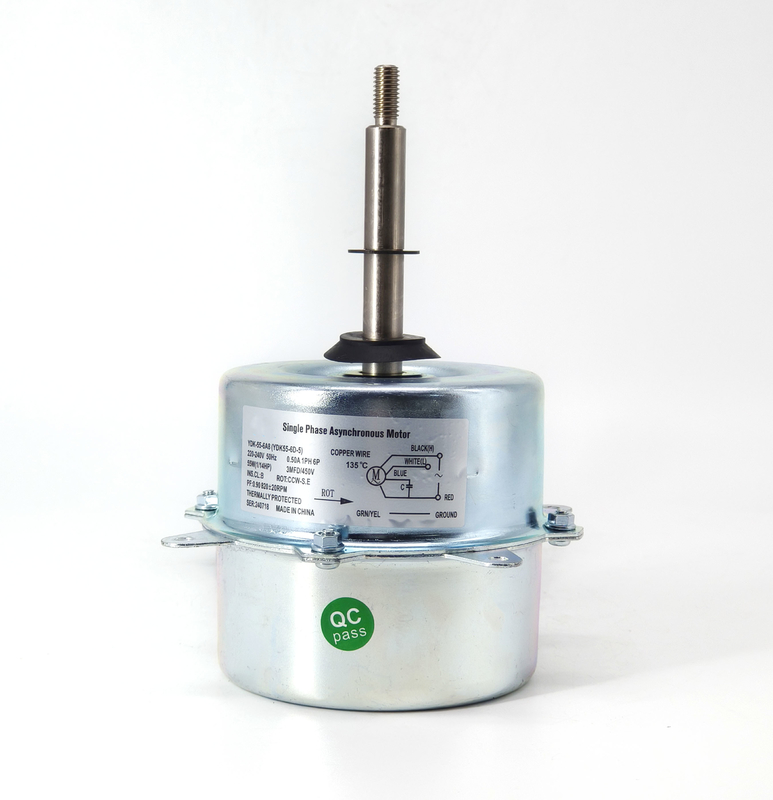

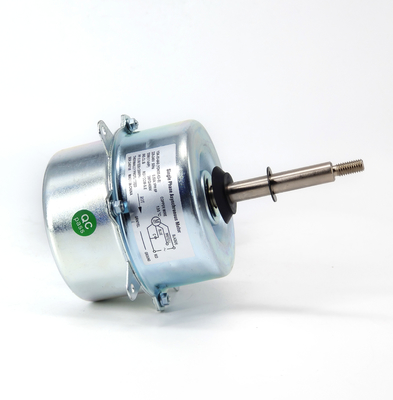

220-240V 50Hz 55W 820RPM Outdoor Fan Motor for Air Conditioning

Ürün ayrıntıları:

Place of Origin:	Changzhou, China
Marka adı:	trusTec
Sertifika:	CE
Model Number:	YDK-55-6A8-SGR

Ödeme & teslimat koşulları:

Minimum Order Quantity:	200 pcs
Fiyat:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

İletişim

Detaylı ürün tanımı

Product:	Outdoor Fan Motor	Frame Size:	95mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	220-240V
Enclosure Type:	TEAO(Totally Enclosed Air Over)	Supply Frequency:	50Hz
Thermal Overload:	Equipped with an Automatic Thermal Overload	Current:	0.5A
Phase:	Single Phase	Output HP:	55W
Shaft Flats:	One flat	Rated Speed:	820±20RPM
Bearings:	Ball Bearing	Pole:	6P
Mounting:	Stud Mounting All Angel	Capacitor:	3.0MFD/450V
Insulation Class:	Class B	Shaft Diameter:	0.47" /12mm
Rotation:	CCW-SE	Shaft Length:	3.48" /88.5mm
Max. Ambient Temperature:	40℃/104℉	Flat Length:	0.63" /16mm
PF:	0.9	Lead Length:	43.3" /1100mm
Housing Length:	3.58" /91mm
Vurgulamak:	55W açık hava fan motoru , 820RPM Dış Fan Motoru
